Using QR Codes

Print QR codes for orders and people, then scan them in Build to check in, open drawings, and read an order.

Last updated 19 days ago

Introduction

QR codes are how the shop floor works hands-free. Print them onto your drawings and onto badges for your team, then scan them in Build to check people into orders, pull up drawings, and open an order’s details without typing anything.

Video walkthrough (1 min 20 sec): print travelers and badges, scan codes in Build, select stages and people, and open work details.

Printing comes first, because you need the codes before you can scan them.


Printing QR Codes

For Orders

  1. Go to Build and open the order you want to print for.

  2. At the top of the order detail, click the More menu (three dots) and choose Print QR Traveler.

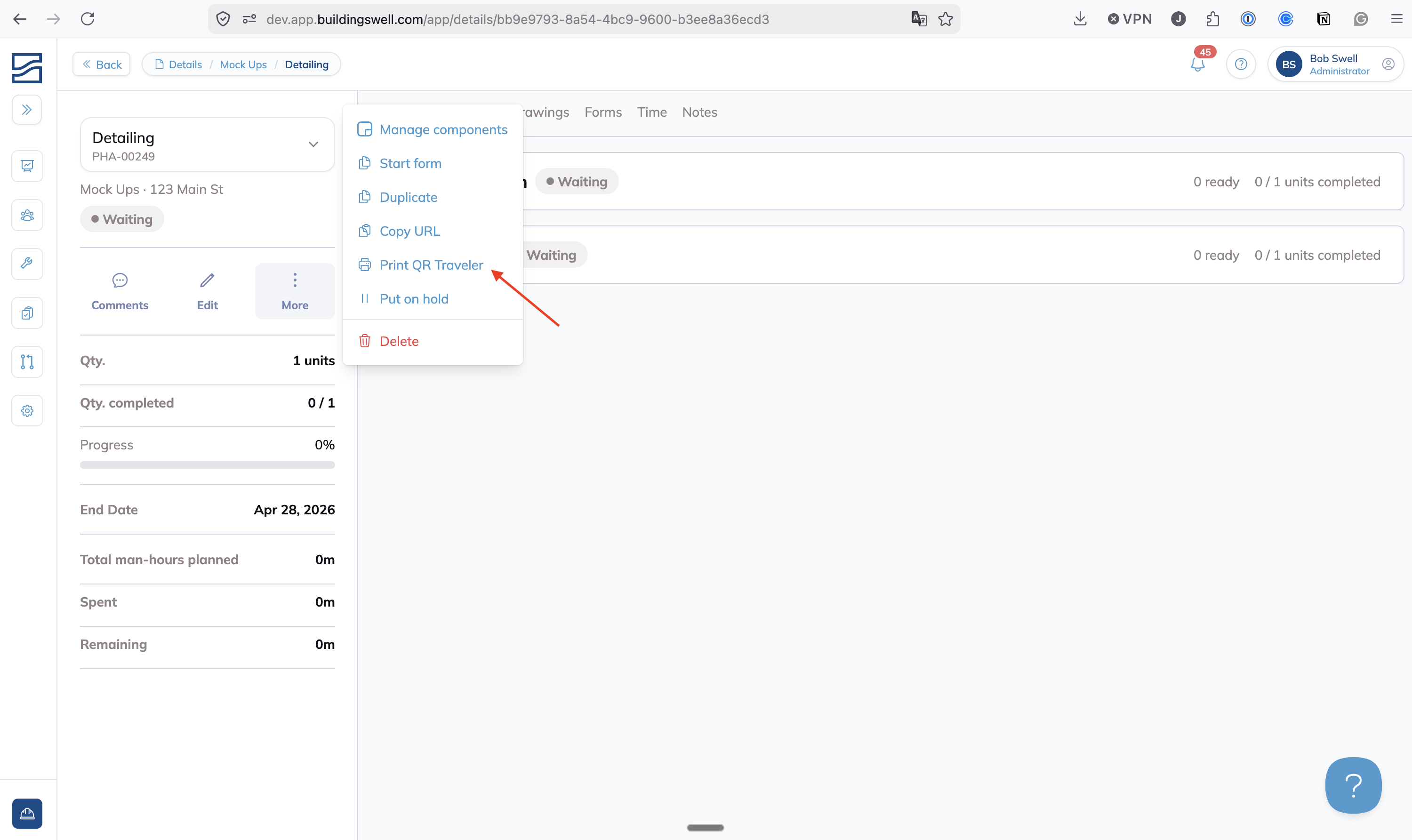

An order's More menu open on the order detail page, with Print QR Traveler among the options.
  1. A print page is generated with all the QR codes for the selected orders.

  2. Click Save or Print to finish.

For People

  1. Go to Rules Engine and open People.

  2. Check the boxes next to the people whose codes you want.

  3. Click Print QR codes.

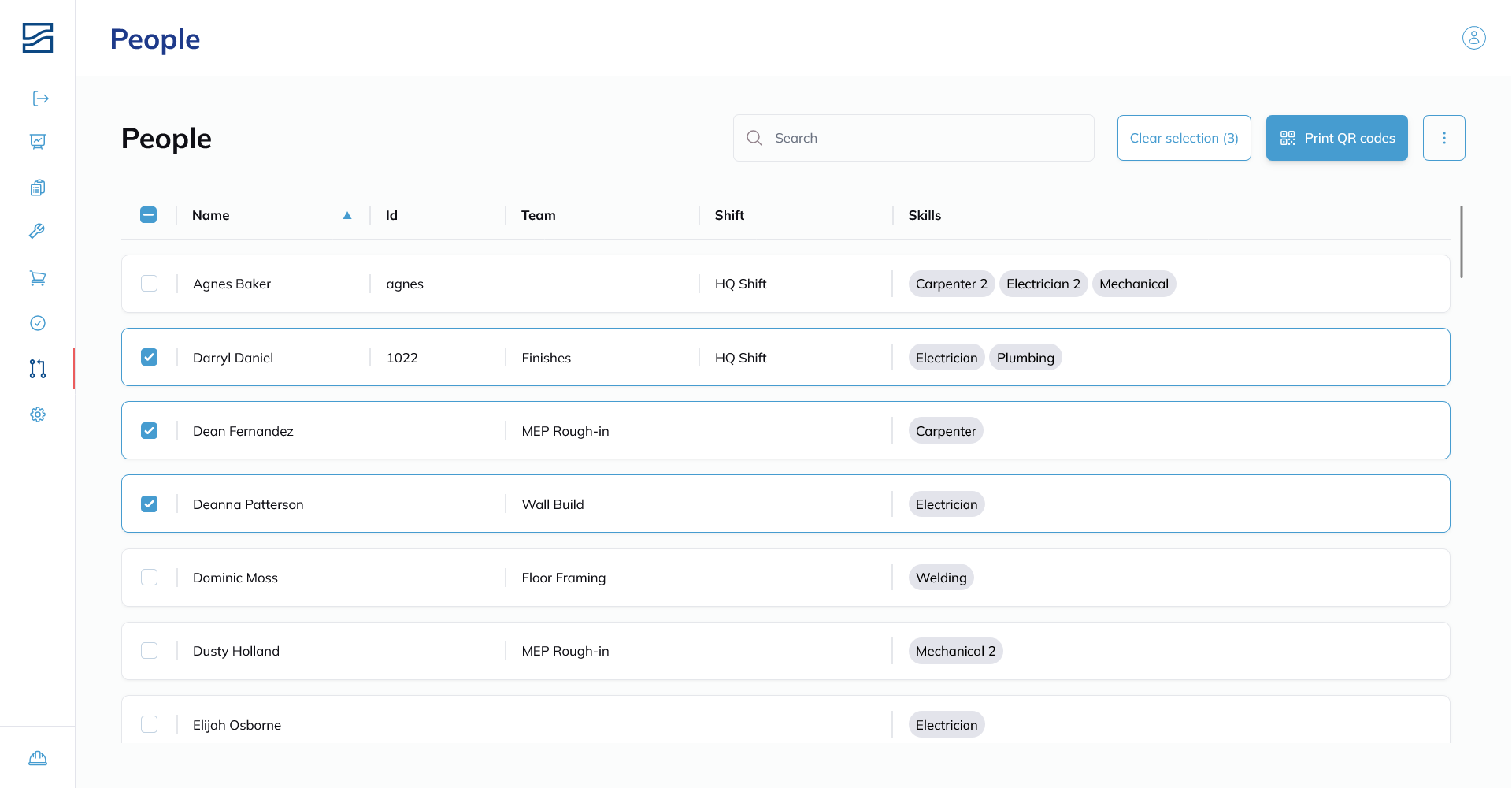

The People list in the Rules Engine with three people ticked and the Print QR codes button above the table.

You can save the codes as a PDF to print later, or print them directly.

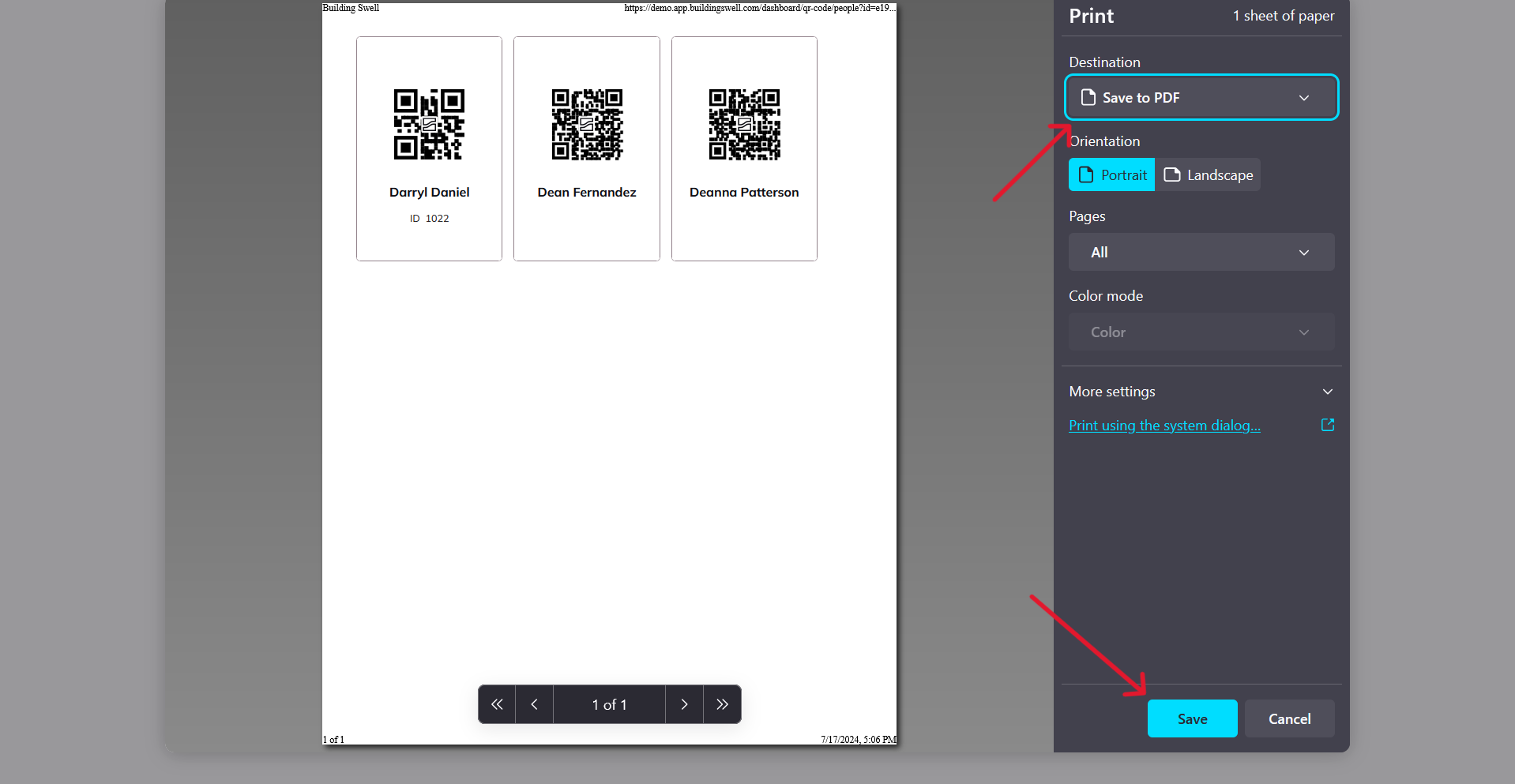

The browser print dialog previewing a sheet of QR badges, with Destination set to Save to PDF.

Laminate the badges

Personnel codes get handled every day. Laminating them is the difference between a badge that lasts and one that stops scanning in a month. Print in batches to save time, and scan one sample after printing to check it reads before you hand them out.


Scanning in Build

Open the scanner

  1. Open Build using the hard hat icon or the Build button in the mobile navigation.

  2. Open Controls and select QR Scanner in the Scan row. On a wider desktop layout, use the direct QR Scanner button.

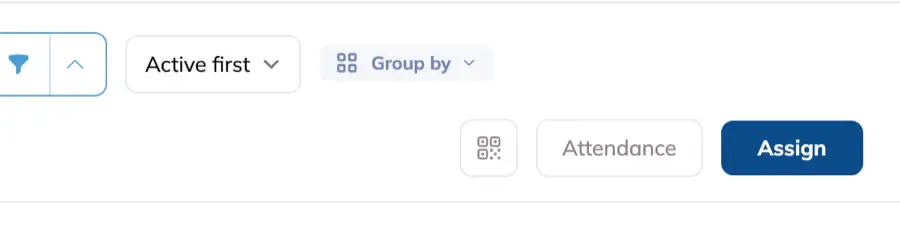

Open the QR Scanner from the Scan row in Build Controls.

Start work from scanned codes

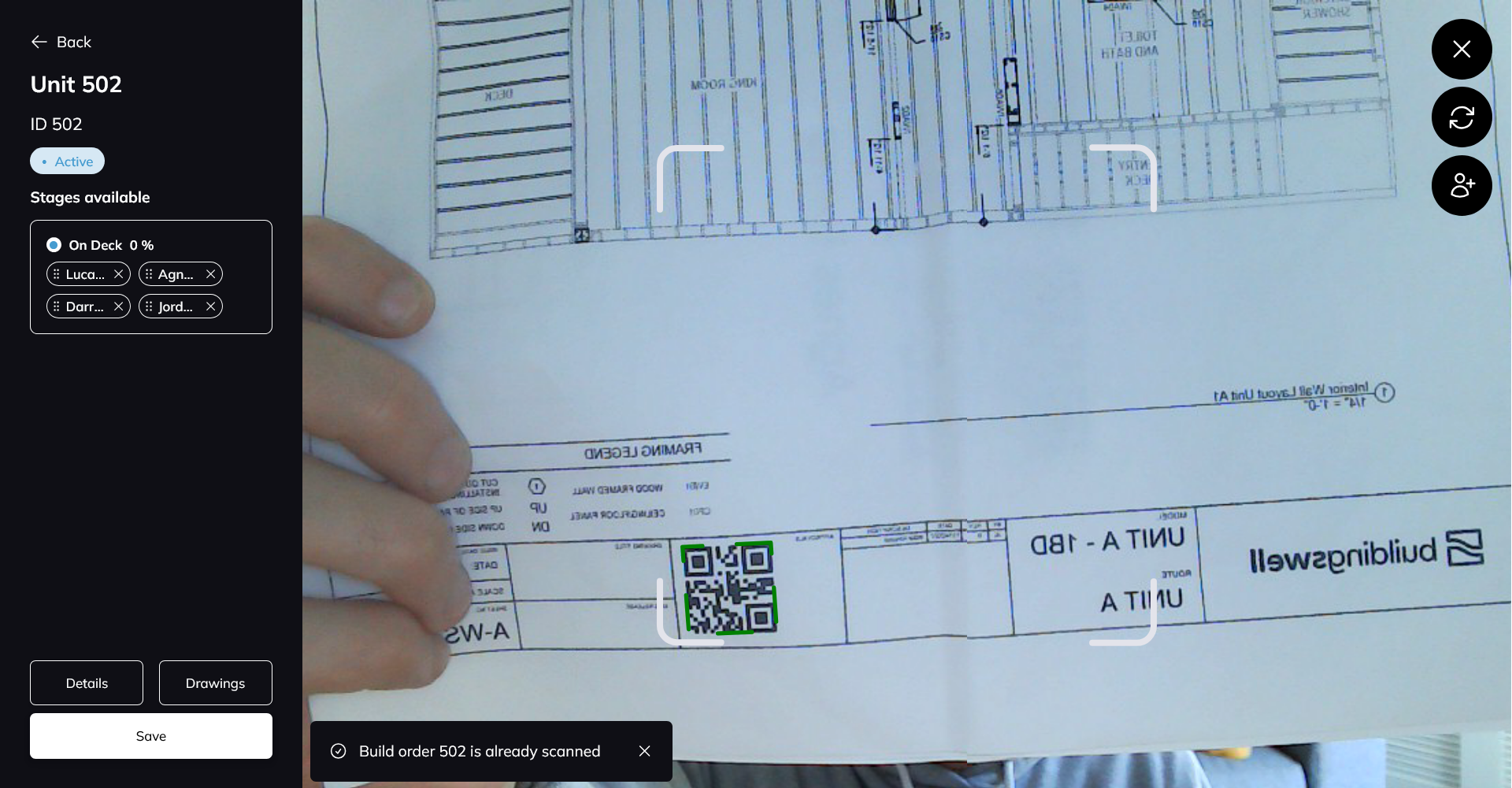

  1. Scan the traveler for the work you need. If an action choice appears, choose Assign to this order, or the matching action for the phase or component you scanned.

  2. Select the stages you need and choose Choose.

  3. Scan each person's badge. You can hold several people before starting, or use Add people to select them.

  4. Review the selected people, stages and department. Remove anything that should not be included, then select Start Work.

If any selected people are absent, review the check-in prompt before continuing. Assigning an absent person saves the plan; checking them in activates their work session.

You can scan people before the work code as well. Review the final people and stage selections before starting.

Open work details and drawings

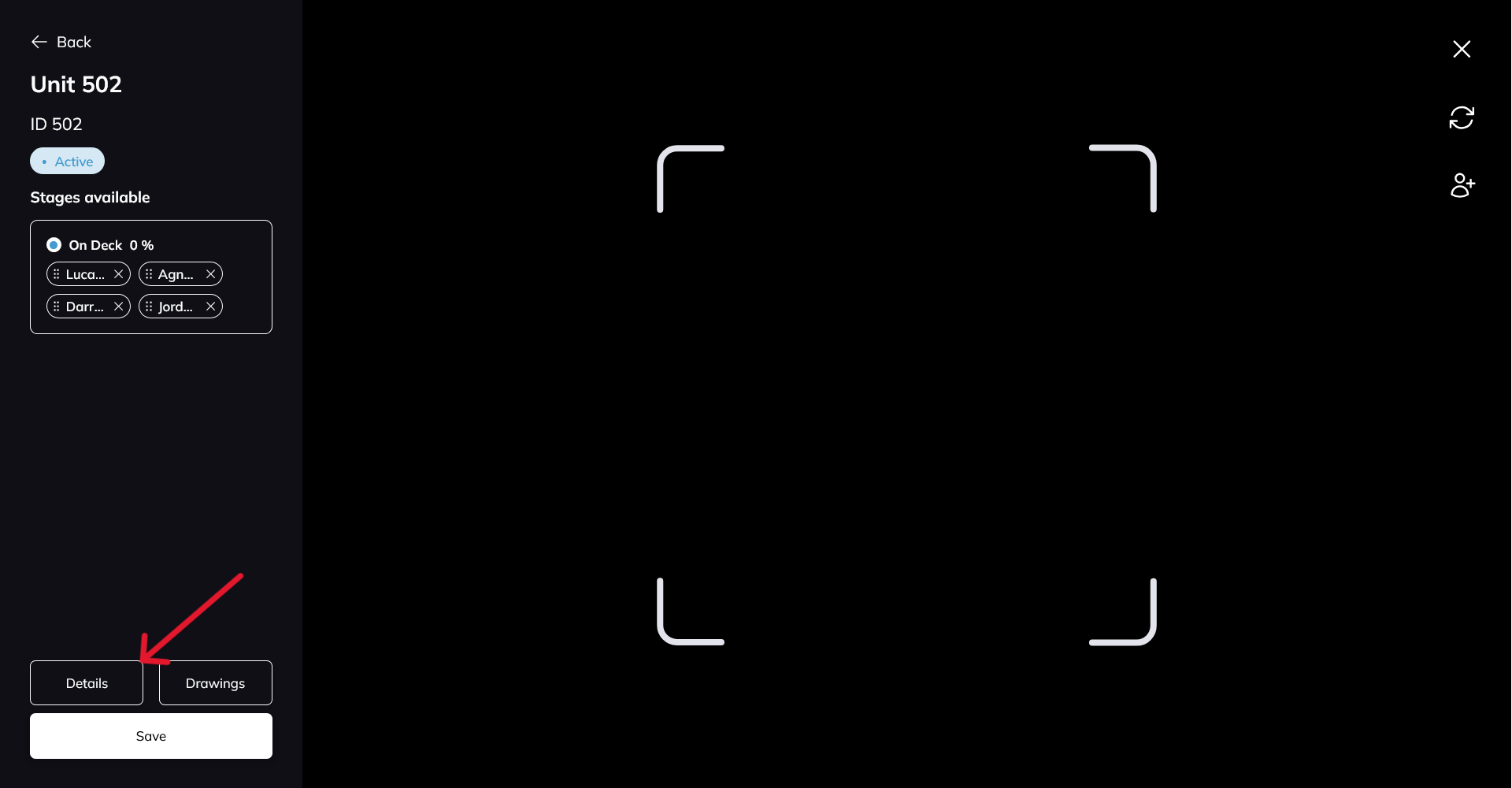

  1. Scan the work code and choose Go to order details, or the matching details action for the item you scanned.

  2. Use Documents to find drawings and files attached to that work.

  3. Use Comments for the item's conversation.

Tips and Tricks

  • Switching cameras. On a device with more than one camera, use the rotation button in the top right to swap between front and rear.

  • Scanning across departments. A person, order, or stage belonging to another department cannot be worked on here. Building Swell names the department it belongs to and tells you either to switch departments or to remove it from the scan so the rest can go ahead.

  • Check a sample. Scan one code after printing, before you distribute a batch.


See Geolocation Events for the location evidence recorded with scan activity.

Conclusion

Print the codes, put them on the drawings and on badges, and the floor can check in, open drawings, and read an order without touching a keyboard.
